 Project XP3D & XP3-SS Merge.

Go down
5 posters
AuthorMessage
Germanese
Admin
Germanese


Posts : 844
Join date : 2010-01-13
Age : 40
Location : Cypress, TX

Project XP3D & XP3-SS Merge. Empty
PostSubject: Project XP3D & XP3-SS Merge.   Project XP3D & XP3-SS Merge. EmptyWed Oct 06, 2010 1:11 pm

Yay another transmitter mod, i have managed to pick up all the parts needed.
Reasons of this mod:
-Cheap Multi memory Transmitter that is 2.4
-Cheap System that uses cheap recievers.
-Has to have Digital display so u can see what you are adjusting.
-Has to feel very close to a high quality transmitter.
-Recievers have to be small and a min of 3 channels.
-3rd channel easily accesable
-Easy access to dual rates.

What I ended up getting.
1x XP3-SS w/ recievers(2.4 that comes with AE cheap RTR)
1x XP3D w/ recievers(FM 10model memory and LCD can be bought forums or ebay for about 30 bucks ish)

The Goal:
To merge these 2 systems.
So you end up with a XP3D-SS a 10 model memory 2.4 Radio system.
With receivers usable from AE that cost 19-40 bucks a pop.
***Small Down Side AE/Futaba electronics have an issue still running Long antennas***

Other options:
You can buy a XP3D and buy a chinese module and use Chinese Receivers. Reason i did not go this route is i cant get the recievers fast or cheap since i get hit by exp shipping costs.

Build Pics coming soon.
Project XP3D & XP3-SS Merge. ASC29221!1007-115301Project XP3D & XP3-SS Merge. 29155_md

Back to top Go down
http://formuladrc.com
Germanese
Admin
Germanese


Posts : 844
Join date : 2010-01-13
Age : 40
Location : Cypress, TX

Project XP3D & XP3-SS Merge. Empty
PostSubject: Re: Project XP3D & XP3-SS Merge.   Project XP3D & XP3-SS Merge. EmptySun Oct 10, 2010 4:10 pm

The XP3D FM Version, I want the front of it.
Project XP3D & XP3-SS Merge. DSC03477

This is the XP3-SS, I want the Back of this Transmitter.
Project XP3D & XP3-SS Merge. DSC03478
Back to top Go down
http://formuladrc.com
Germanese
Admin
Germanese


Posts : 844
Join date : 2010-01-13
Age : 40
Location : Cypress, TX

Project XP3D & XP3-SS Merge. Empty
PostSubject: Re: Project XP3D & XP3-SS Merge.   Project XP3D & XP3-SS Merge. EmptySun Oct 10, 2010 4:20 pm

XP3-SS Dissambled, Pink Outline, You want the back case that module and the antenna of this transmitter.
The little Board with the Switches, just unscrew it and let it go with the left overs.
Project XP3D & XP3-SS Merge. DSC03479

XP3D Dissambled, Pink Outline, is what you want to keep.
Project XP3D & XP3-SS Merge. DSC03480



Back to top Go down
http://formuladrc.com
Germanese
Admin
Germanese


Posts : 844
Join date : 2010-01-13
Age : 40
Location : Cypress, TX

Project XP3D & XP3-SS Merge. Empty
PostSubject: Re: Project XP3D & XP3-SS Merge.   Project XP3D & XP3-SS Merge. EmptySun Oct 10, 2010 4:26 pm

The XP3D has an FM/AM antenna output from the board. Its the white wire attached to an L piece.
As seen just cut it or desolder it from the board. Like seen below.
(You can leave it if you want but I need this peice to turn the other left overs into a Simple FM)
Project XP3D & XP3-SS Merge. DSC03482
Back to top Go down
http://formuladrc.com
Germanese
Admin
Germanese


Posts : 844
Join date : 2010-01-13
Age : 40
Location : Cypress, TX

Project XP3D & XP3-SS Merge. Empty
PostSubject: Re: Project XP3D & XP3-SS Merge.   Project XP3D & XP3-SS Merge. EmptySun Oct 10, 2010 4:34 pm

Reassemble the back of the XP3-SS onto the XP3D Front.
Make sure the holes from the XP3-SS Back Line up with the Front Pins of the XP3D
Project XP3D & XP3-SS Merge. DSC03479-1

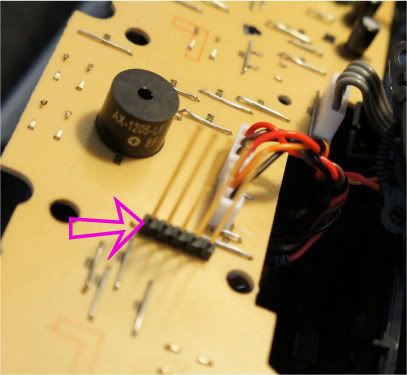

The pins from the XP3D Front.
Project XP3D & XP3-SS Merge. DSC03481-1


Last edited by Germanese on Sun Oct 10, 2010 4:56 pm; edited 1 time in total
Back to top Go down
http://formuladrc.com
Germanese
Admin
Germanese


Posts : 844
Join date : 2010-01-13
Age : 40
Location : Cypress, TX

Project XP3D & XP3-SS Merge. Empty
PostSubject: Re: Project XP3D & XP3-SS Merge.   Project XP3D & XP3-SS Merge. EmptySun Oct 10, 2010 4:49 pm

Now Reassmble everything and You should now have a XP3D-SS.
Full Digital 2.4Ghz Transmitter with 10 Model Memory, Dual Rates, End points and ARC etc. etc. Pretty much all the basic bells and whistle you need.
Including a 3rd channel button on ur grip which you can dial % in also.

Your transmitter now uses these 2.4 recievers. Which can be bought new for $25-30 USD, used for even cheaper.
XP TRS401-SS 2.4GHz 4CH Receiver

http://aedownloads.com/downloads/manuals/radio.xp3d.pdf
The menu remains the same and manual will follow these instructions.

http://h1072147.hobbyshopnow.com/ProdInfo/Files/ASC29221-Manual.pdf
Bind instructions will follow this manual

Project XP3D & XP3-SS Merge. DSC03485


Last edited by Germanese on Sun Oct 10, 2010 5:34 pm; edited 1 time in total
