 PC PSU into RC PSU

View previous topic View next topic Go down
AuthorMessage
Germanese
Admin
avatar

Posts : 844
Join date : 2010-01-13
Age : 34
Location : Cypress, TX

PostSubject: PC PSU into RC PSU   Thu Jul 08, 2010 9:05 pm

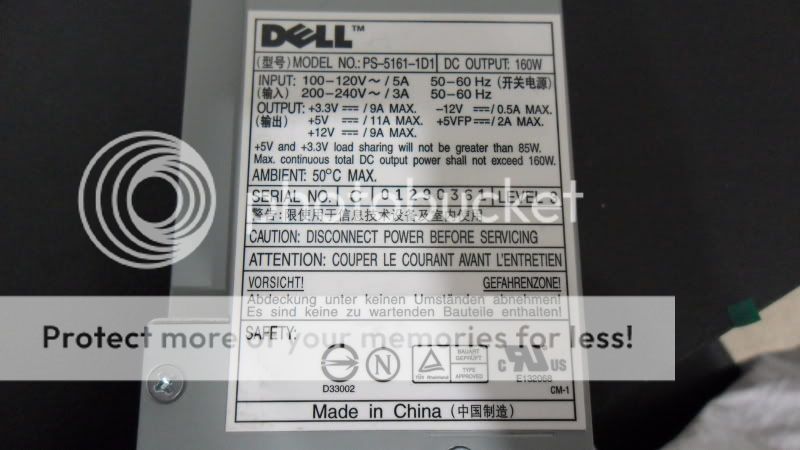

What we are looking for is the 12V/9A. The more amps at 12V the better. 5V and 3.3V does not interest us.


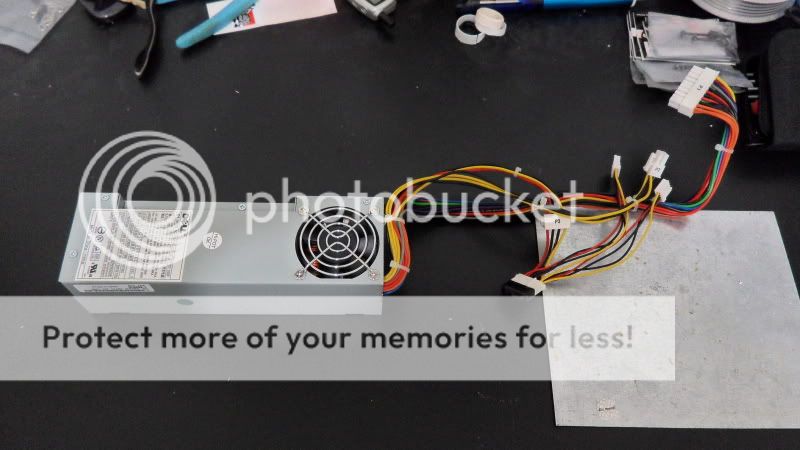

This PSU (Power Supply Unit) was pulled out of a pule of sh!tfaced Dell PCs in my Garage.


Okay, the 12v cable will be the Yellow wire, thats 12v positive.
Most of the black wires are all comon Negative they all come together at one point on the board.


Next we have to find the wire that turns this sucka on. aka On/Off Switch wire.

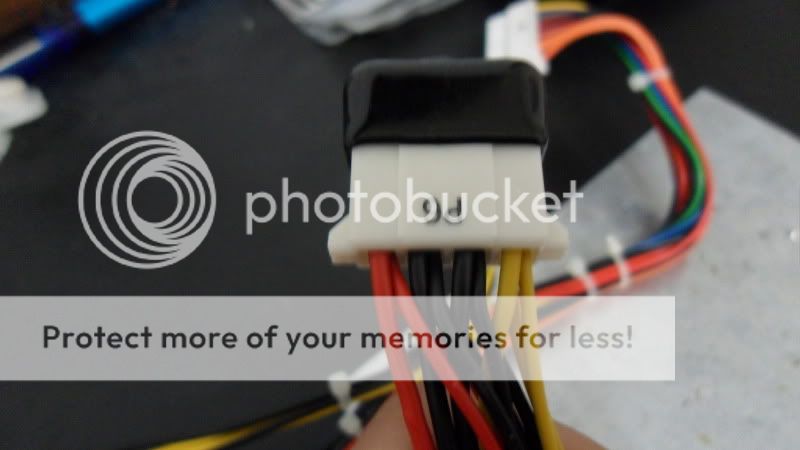

This will be the green wire pictured here and the black wire on its left (The one alone)
Not the black on the other side.
(On some PSU this doesnt matter, on higher end you have ot pick the left one)


Lets undress this bich, you could just splice the wires and tap it from there.


But I like to solder thicker wires to the board itself.


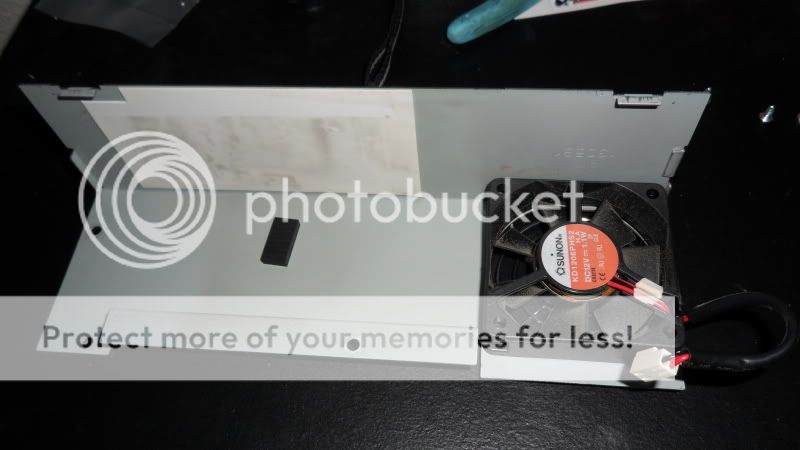

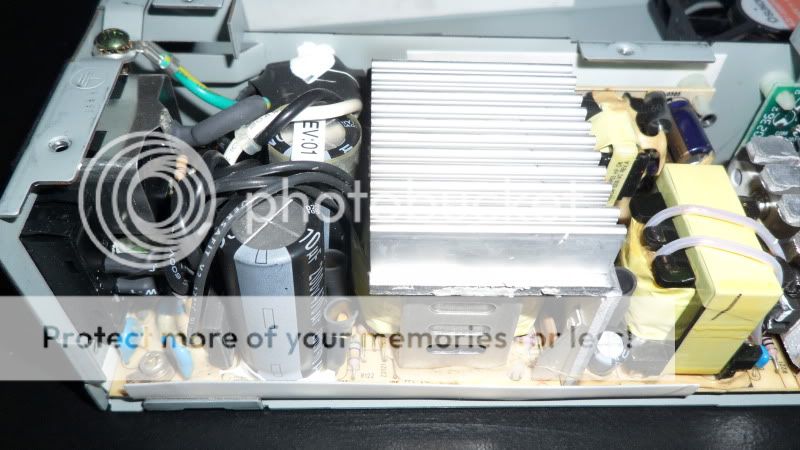

There is the fan assembly. Some fans are constant on. Others are controlled by a Temp sensor.


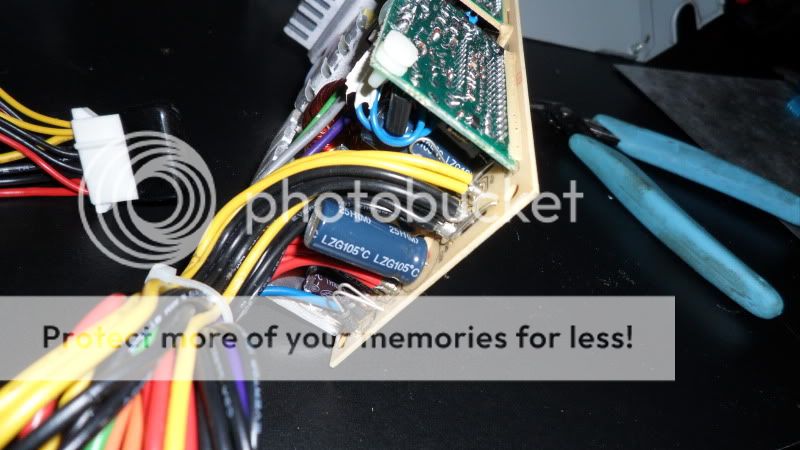

There is the 12v Positive and the Negative Cables. Note how they all bunch up into one spot.


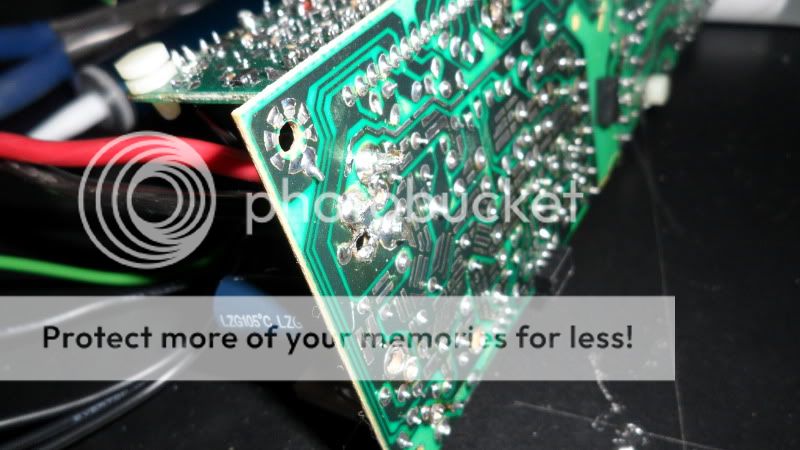

Here is the 1 negative wire replacement.


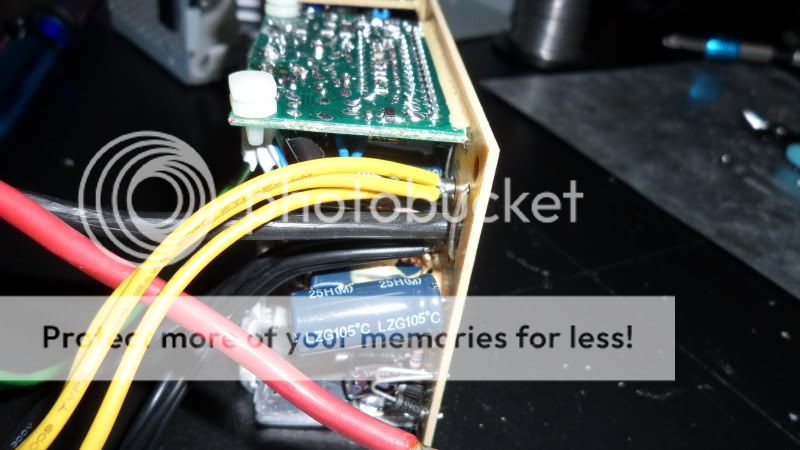

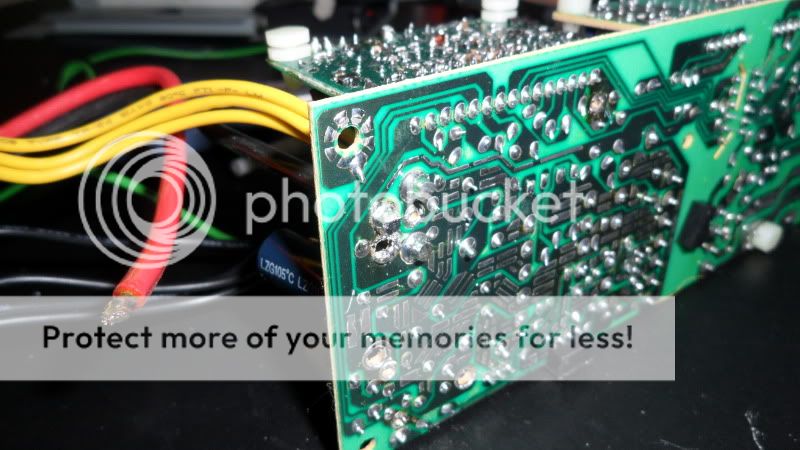

This thicker red wire will replace all the yellow wires for the Positive 12v+


This is how it looks like once done.


Reassemble pics coming soon, still testing if this is a Temp Controlled fan or Always on fan.
